You are here: ADDOLCITORI PER ACQUA DEPURATORI ACCESSORI FILTRI

Product: SLIM CLEAR 2P - 2-piece water filter - trasparent container - with bracket and key - - ADDOLCITORI PER ACQUA DEPURATORI ACCESSORI FILTRI

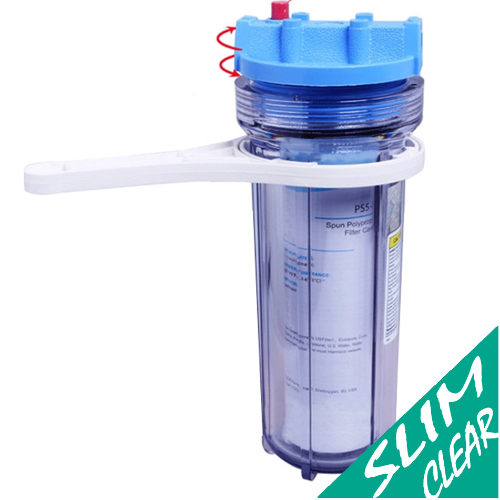

click to zoom the image	"SLIM CLEAR" CONTAINER FOR DRINKING WATER FILTERS Filter housing for potable water Main Features: The 2-piece SLIM CLEAR housings with gasket, designed to contain different types of cartridges for water filtration. They are mainly used in residential applications whit flow rates of up to 100 liters per minute. They are also widely used in the food industry and for technological uses. Non-toxic plastic construction: High chemical resistance. These housing are characterized by threaded brass inserts, O-ring in EPDM and air bleed valve placed directly on the head. The two-piece structure provides the container with high strength. Recommended maximum operating pressure: 8 bar. For applications where there is a likelihood of sudden increases in pressure, the use of a pressure reducer or a pressure compensator is recommended. Max instantaneous differential pressure: 2.0 bar.

The following products models are available for purchase:


	Size	Flow rate (cu.m/h)	Filtering	PN (bar)		VAT excluded	Order now! QTY

CONTENITORE SLIM CLEAR 2P 1" 10 XP5302	IN&OUT1'' ALTEZZA 10"	4,5 mc/h	Contenitore vuoto	PN8	Spedizione immediata	Sconto 20 % € 25,50 € 20,40	Add to cart
CONTENITORE SLIM CLEAR 2P 1" 20 XP6719	IN&OUT1'' ALTEZZA 20"	6 mc/h	Contenitore vuoto	PN8	Spedizione immediata	Sconto 20 % € 48,40 € 38,72	Add to cart

The table shows two types of containers (for 10" and 20" cartridges)

Each measurement can be supplied with different filter cartridges

filtro per acqua disponibile in diverse misure e gradi di filtrazione

How to choose the perfect filter for your needs?

1) The first thing you need to do in order to choose your filter is thinking about the goals you want to achieve.

2) Chose your housing based on the flow.

3) Normally the size of home-residential filters is standard. They are distinguished by the height and width of the container/housing.

4) You have to chose the cartridge based on the filtration you want to obtain. The degree of filtration is expressed in microns of a millimeter and it indicates the granulometry of the solids that the filter can retain during the flow of water.

5) To find out when an FA or PP filter needs to be replaced, the cartridge must be monitored. The wrapped wire or polypropylene cartridges get dirty almost immediately and you can not rely only on the external color.
N.B. Always mark in a log the last time you changed the filter. This memo will serve you to make an annual average.

Filter Cartridges

60 microns cartidges for water - with washable mesh

filtro a rete alta qualità per acqua potabile

Cartridges in 60 micron polypropylene are used to eliminate sand and loam.

20 microns cartidges for water - pleated

acquista in sicurezza i nostri filtri per acqua potabile

To remove sand or silt more effectively, it is preferable to install the 20 micron pleated cartridge. The particular shape of the filtering mesh gives the product less maintenance. The filtering surface is 10 times larger than normal washable filters.

20 microns cartidges for hot water - pleated

filtro per acqua calda - ricambio per filtri aqua atlas - chillichemie - compatibile con contenitori vessel da 10

Like the filter above, with the only difference that SLIM RED is designed to withstand temperatures up to 75 ° C. Although the SLIM RED cartridge is compatible with all SLIM 2P containers, combined with the SLIM RED housings, it can flowing water at temperatures up to 75 ° C.

Pleated filter cartridge version for hot water;

10 /5 /1 microns cartidges for water - meltblown

filro per acqua installazioni domestiche - tecnologiche - industriali - filtrazione finissima per la casa

Compatible with SLIM 2P and SLIM3P housings

10/ 5 / 1 micron filter are used to eliminate sand, turbidity and solids with a ferrous color.

5 micron filter cartidges for water - activated carbon

To dissolve the limestone normally present in the water it is preferable to install a polyphosphate salt filter.

Thanks to their ability to bind to calcium ions (Ca ++) and magnesium Mg ++, the polyphosphate salts mixed with common detergents increase the foam, improve the effect of soaps, and have a solubilizing effect of the calcre. Their effect begins to decay with a water temperature above 60 °C until their contribution is zeroed with temperatures close to 100 °C;

Indispensable to defeat limestone at the entrance to washing machines, dishwashers, poorly indicated for food grade;

Properly cleaning of cartridge filters

1) When the washable mesh cartridge is dirty it get clogged, decreasing the flow of water. In case of network breakage the water flow increases but with it also the dirt of the water.

2) When the pleated cartridge is dirty it tends to become clogged, decreasing the flow of water; but if the network breaks, the flow of water increases.

3) The wire wound filter cartridge when it is dirty tends to widen the filter mesh, passing solids with a larger particle size.

4) When the meltblown polypropylene cartridge is dirty, it clogged and the flow of water decreases considerably.

Filter maintenance

1) The washable mesh cartridge can be cleaned many times until the network is irreparably damaged. The cartridge can be cleaned with the aid of soapy water or with simple compressed air.

2) The pleated cartridge is more fragile than the mesh cartridge. Its cleaning is done with compressed of air or hot water. It can be carried out until the filter is broken.

3) If the wire wound filter cartridge is not particularly torn, it can be cleaned several times with hot water.
4) The polypropylene cartridge must be replaced if it gets dirty.
