You are here: SUBMERSIBLE PUMPS AND MOTORS FOR WELLS > SUBMERSIBLE ELECTRIC PUMPS IN KIT FOR WELLS

Product: MAX2 - 50 mm Submersible monoblock electric pumps for tight wells for clean waters - SUBMERSIBLE ELECTRIC PUMPS IN KIT FOR WELLS

click to zoom the image

MAX2
SLIM single-phase submersible pump in Kit


Pump Nomenclature: Max2
Use: water lifting
Power:
230 Vac - 0,37kW - 0,50Hp
Average performance: 20 meters (2,0 Bar) with 10 L/min
Max height: 40 meters (4,0 Bar)
Application:
Wells (minimum internal diameter 55mm, tanks)
Supplied electric cable: 10 meters
Protection class: IP68

The following products models are available for purchase:

pompa sommersa per pozzi strettipompe sommerse per pozzi da 2 pollici  pompa prevalenza 200 metri  pompa prevalenza 100 metri  pompa sommersa prevalenza 100 mt  pompe sommerse per pozzi profondi  pompa sommersa prevalenza 200 metri  pompe sommerse per pozzi prezzi  pompa sommersa prevalenza 50 metri

Power

Volts

Flow Rate

Shipping

VAT
excluded

Order now!

QTY

kW

Hp



Q=l/min'

5

10

15

20



Q=mc/h

0,3

0,6

0,9

1,2

MAX 2 SERIE SLIM XP9750

0,37

0,50

1x230

H=ml

27,5

20

15

10

from 30 July

Sconto 20 %

€ 314,60 € 251,68




DESCRIPTION
The Max2 submersible pumps are designed to reduce installation time and to take up a minimal amount of spaceThe capacitor is mounted inside the pump. These electric pumps are widely used in domestic, agricultural and industrial applications.  Installation can take place inside tanks and/or wells.


MAIN FEATURES
Compactness
Thanks to the on-board integrated machine systems
Low noise
Max. Operating pressure:
4,0 BAR
Max. Flow: 20 liters per minute at 10 meters high

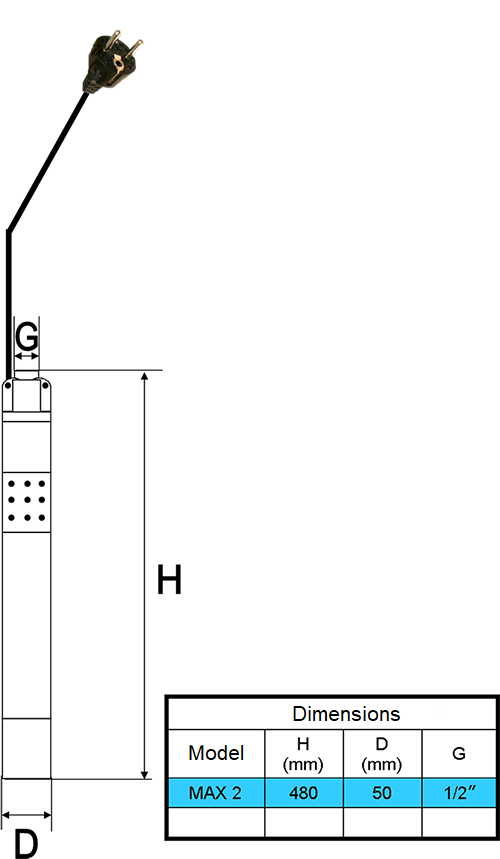

MAX2 data sheet:

pompe sommerse per pozzi lowara  pompe sommerse per pozzi artesiani prezzi  pompe sommerse per pozzi profondi  pompa sommersa prevalenza 50 metri  pompe sommerse per pozzi artesiani lowara  pompe sommerse per pozzi usate  pompa prevalenza 200 metri  pompe sommerse per pozzi da 2 pollici

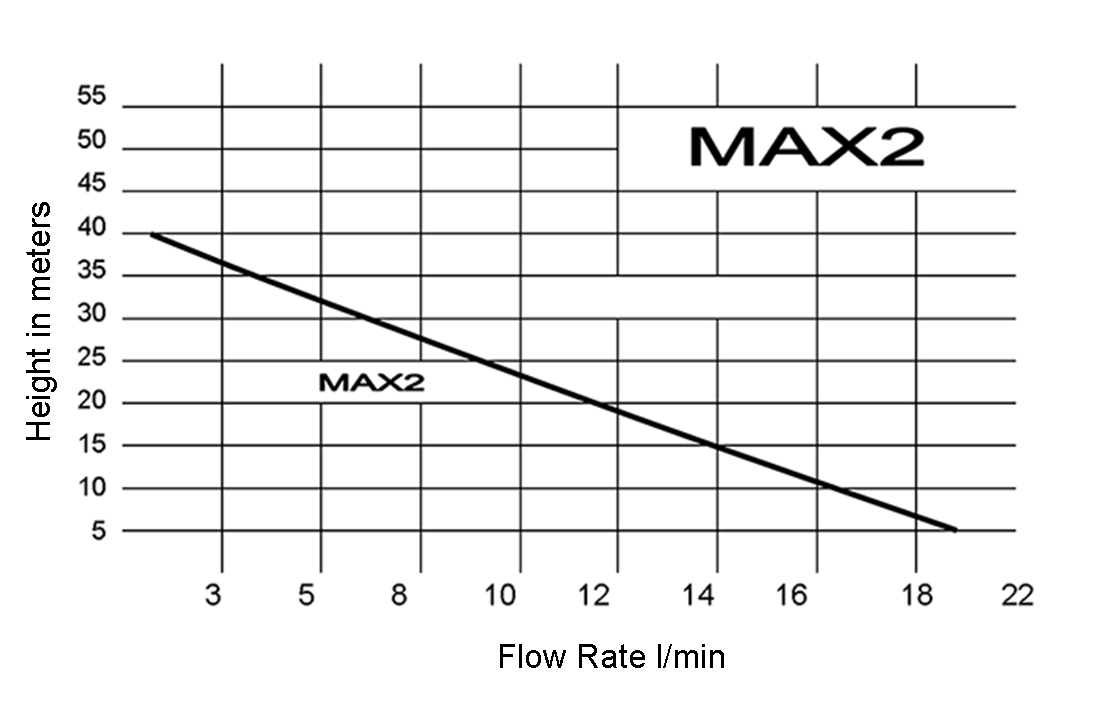

Working curve

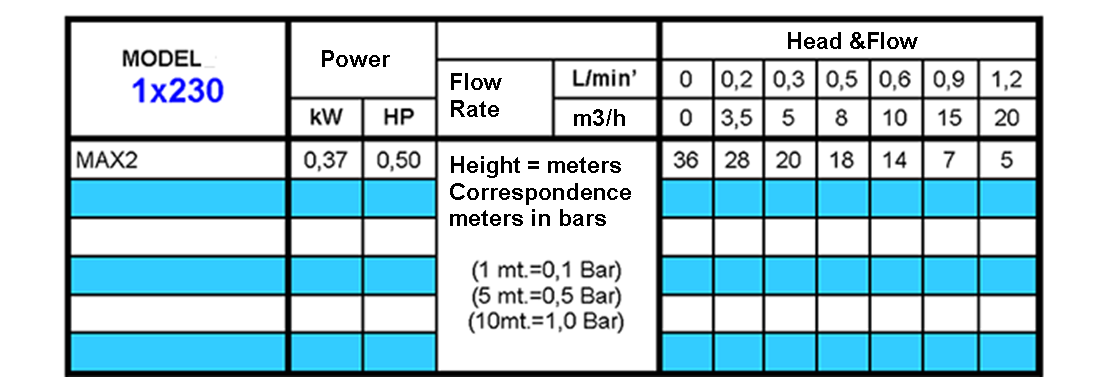

Hydraulic performance
