Product: Subtronic - Automatic bottom suction submersible pump - AUTOMATIC SUBMERSIBLE PUMPS

click to zoom the image	SUBTRONIC 1000 Single-phase submersible automatic pump for increasing water pressure Pump Nomenclature: SUBTRONIC1000 Use: to increase water pressure at home Power: 230 Vac - 0,75 Kw Number of living units: four (4) Location: ground floor + 3 floors Start setting: 3 bar Application: Well and tank Protection class: IP68 Power Cord: 10 meters Also available the 0.55 Kw version

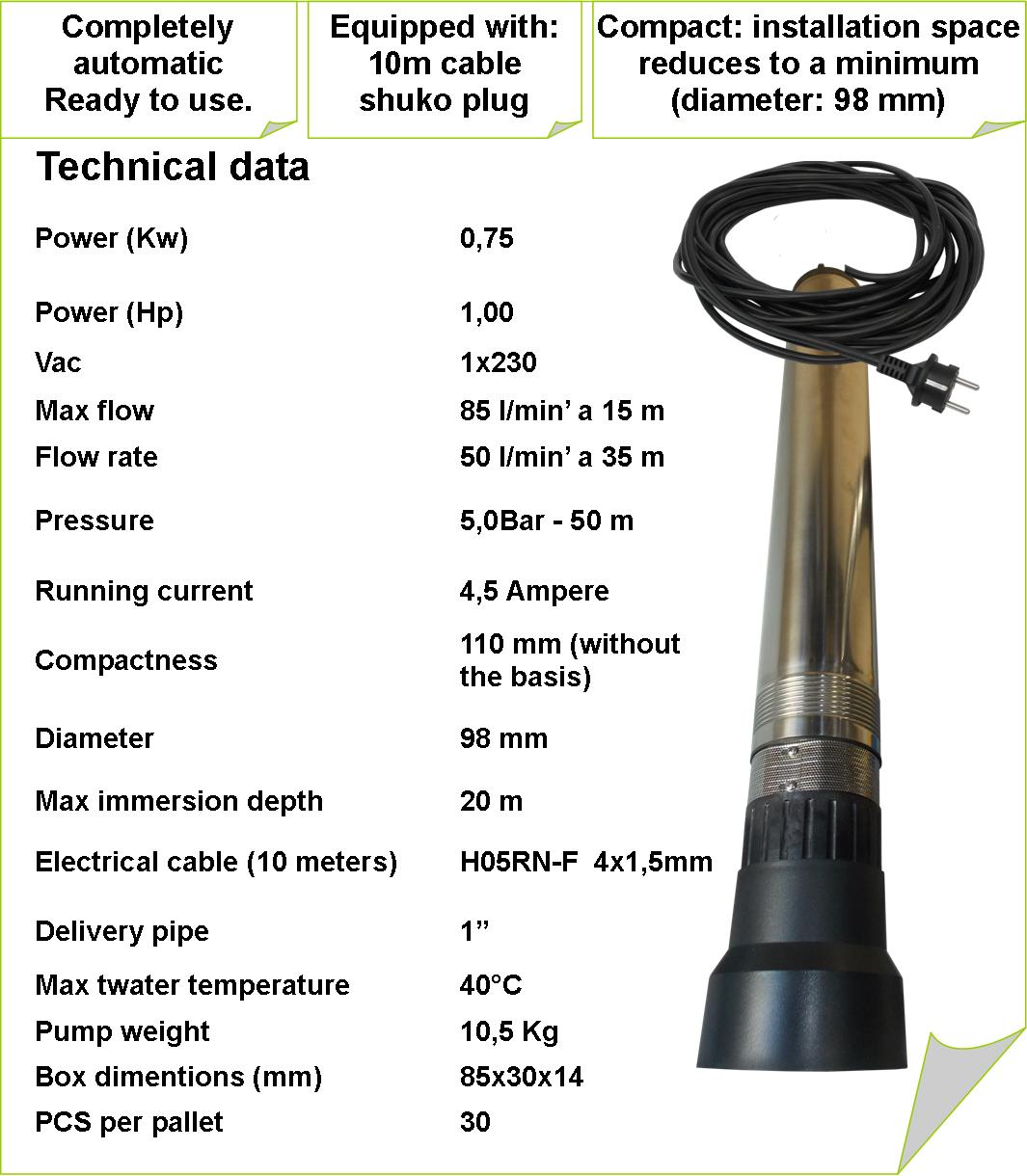

Scheda tecnica subtronic Handbook

The following products models are available for purchase:

	Power		Volts	Flow Rate					Shipping	VAT excluded	QTY
	kW	Hp		Q=l/min'	60	75	80	85
	kW	Hp		Q=m3/h	3,6	4,5	4,8	5,1
SUBTRONIC 1000 XP9520	0,75	1,00	1x230	H=ml	30	23	18	13	Immediate Shipping	Sconto 20 % € 426,30 € 341,04	Add to cart

Confidential negotiations for orders over 500 pieces

Cost analysis of SUBTRONIC 1000

The price that the customer would spend for the purchase of a similar product

Eur 280.00 for a 1,00 Hp Submersible Pump
Eur 25.00 for a Presscontrol
Eur 12.00 for an air vent valve
Eur 20.00 for fittings
Eur 50.00 cost of labour

Tot: 387.00 Euros

DESCRIPTION

SubTronic submersible pump is a Plug&Play product. It is designed to minimize installation time and to take up a minimal amount of space.

There are two models available:

1)SUBTRONIC 750 that takes 0,75HP (0,55kW);

2)SUBTRONIC 1000 that takes 1,00HP(0,75kW).

Both are single-phase pumps powered at 230Vac.

These electric pumps are characterized by special technical engineering features that make them very efficient.

MAIN FEATURES

Automatic Operation Start: When you open the tap - Stop: when you close the tap

Low noise

Compactness

Stop in case of a block If the pump will block, it will stop immediately
