SANYPUMP Domestic hot water circulation pump
Pump Nomenclature: SANY-PUMP
|
|
TYPE |
IN & OUT |
IN & OUT |
|
|
VAT |
Order now! |
|---|---|---|---|---|---|---|
|
SANY 20-6-130 CIRCOLATORE PROGRAMMABILE XP4100 |
1"M | 3/4"M | 130 mm |
Sconto 20 % |
|
|
|
SANY 25-6-130 CIRCOLATORE PROGRAMMABILE XP4101 |
1"1/2M | 1"F | 130 mm |
Sconto 20 % |
|
Confidential negotiations for orders over 500 pieces
APPLICATIONS
The circulating pumps ("programmable electronic pumps") conduct hot water through homes, houses and offices. However, these pumps can also be used in the solar circuit.
DESCRIPTION
SANY-PUMP guarantees a better cooling thanks to the motor stator (that is totally shielded), and thanks to the rotating parts (that are completely water immersed).
The stator is guarded by a protective cover. The special rolling-element bearings reduce the operating noise.
MAIN FEATURES
Pump housing in brass
Intuitive and easy display
Time Interval Setting
Temperature setting
Time/temperature setting
Compactness
Liquid temperature range from +2°C to +75 °C
Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Low noise
Ease of maintenance each component of the pump is easy to exchange

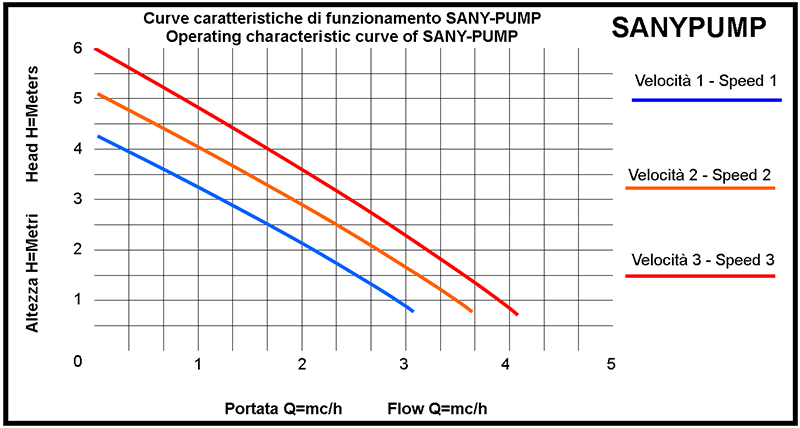

Max. Flow: 4,2 m³/h
Maximum glycol content: 30%
Protection class: IP44
Max. Operating pressure: 10 bar
Insulation Class: F
Motor: 4-pole electrical asynchronous with wet rotor
MATERIALS
Pump housing: brass
Impeller: technopolymer
Engine housing: cast aluminum
Crankshaft: ceramic
Coating: stainless steel
Pressure ring: ceramic
FUNCTIONS

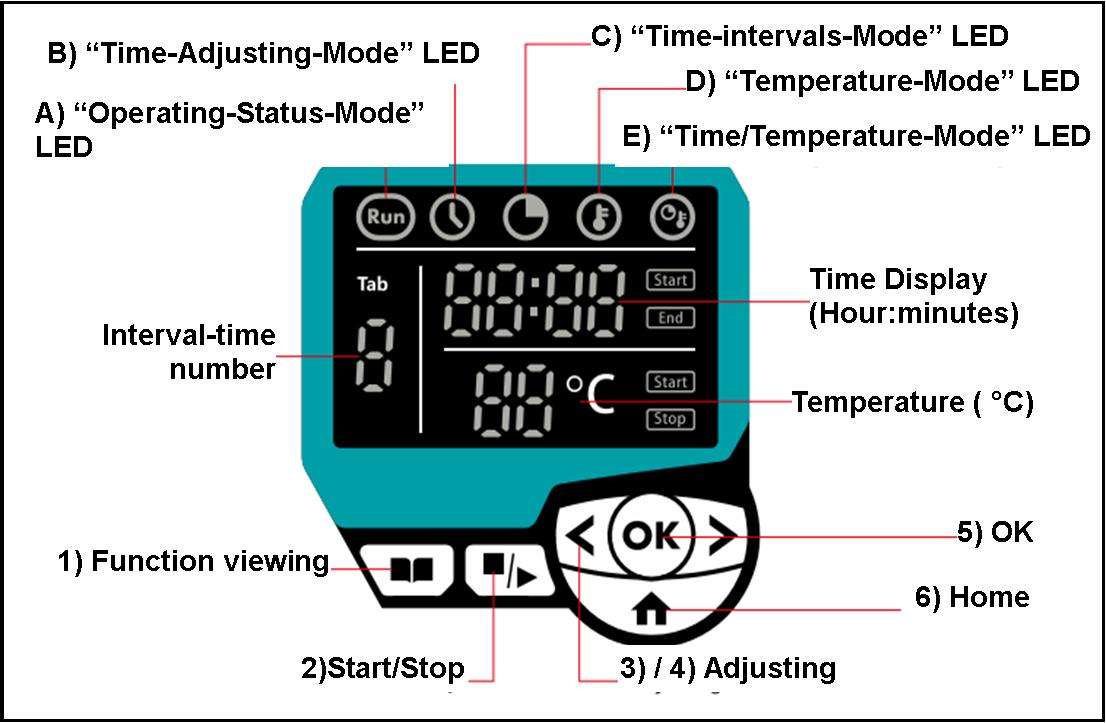

The assistant panel of SANY-PUMP is designed to give an intuitive and simple interface. The circulator has six (6) buttons and ten (10) different time-intervals.
The pump installation instructions are included in the manual
